Figure 2 Connected to Somfy Wireless Dry Contact Transmitter

A single Multix gateway can control up to 60 such relay modules as long as they are within the RF communication range (25~30m).

Case Study: Connect with Somfy Dry Contact Transmitter

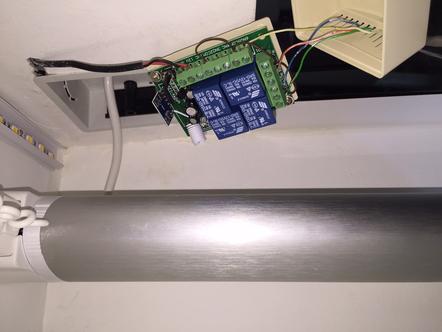

Figure 1 Connected to Somfy Curtain Relay Port

Since the RF433mhz signal from SOMFY is an encrypted rolling code, MultiX  is unable to learn and replicate it. However we can control the4 Channel Relay ML-RFR-4CH  from Multix Gateway and easily connect with Somfy Dry Contact Port or Transmitter. This same method can be used to control any third party system with dry contact interface into Control4.
